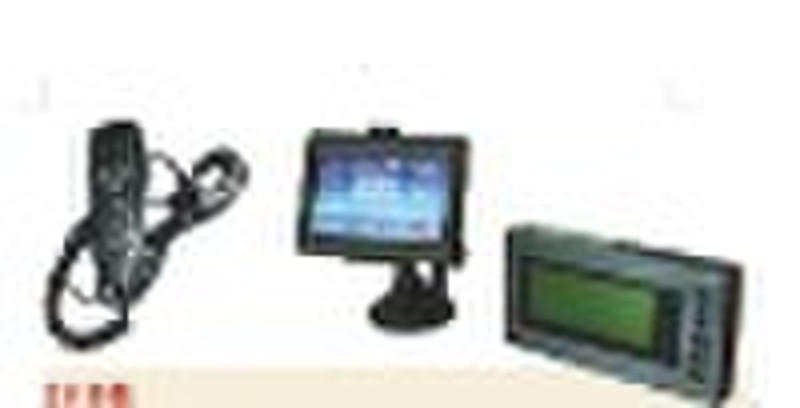

LCD Scheduling Screen

LCD Scheduling System Functions Location Indication: Show the GPS location situation Communication Indication: Show the GPRS Disconnection situation Input Methods: Pinyin, Character, Mark, Stroke Message Capacity: 99 fixed massages+20 editing messages+20 messages from center+20 messages from cell phone. Checking Call Log: 20 dialed calls+20 answered calls+20 missed calls Editing &Reserving Phone NO.: Can reserve 160 records Group/Team Call: Can reserve 243 phone no. of the group/team User’ Regular Information Downloading:Can wireless download the information set by the users (need supported version) Wireless Software Downloading: Can wireless download and update scheduling screen software (need supported versions) Subscriber Dialing Function: Can be set by supplier according to users’ requirement. Call Restriction Function: Can be set by users or manufacturers. Caller ID Display: Display caller’s ID and ring at the same time. Call Toggle: holding call, hands free and scheduling screen can be interchanged. Ring tone: There are 5 kinds of ring tones on the scheduling screen for choice. Built-in Loudspeaker:When holding a call, can use audio cables or listen from the build-in loudspeaker. Sing-in Function: Can support the function of clocking in/out, signing in to and from work Locking Function:lock the car when it stops. Scheduling Screen Download Function:Can update the GPS Vehicle System terminal software through the scheduling screen, providing great convenience for maintenance (This function permission is opened by the manufacturer at certain time). Positioning Function: Connected with the GPS signal of the scheduling screen for the purpose of the positioning screen (only for APP-X-CD model, installing map is needed)Technical Parameter Lattice:192*64 Duty Cycle:1/64 Contrast Adjustment:Manual Non Step Angle of view:6 o’clock Direction Backlight Color: Blue/Yellow Operation Method:Combination of Infrared Remote Control & Panel Key Pressing Infrared Remote Control Distance: More Than 3 Meters Communication Interface:RS232 Baud Rate:19200(Standard, but can be custom-made) Power Requirements Voltage Range: 4.5—5.5VDC Working Current: Less than 100mA Environmental Requirement Working Temperature:-10°C-- +55°C Storage Temperature: -25°C -- +60°C Relative Humidity: 5% --95% Size Display Screen Vision Size:39mm*104mm Display Screen Dot Pitch Size: 0.508mm*0.508mm Display Screen Dot Size: 0.458*0.458 Product External Dimension: 166mm*80mm*30mm Connection Wire:2000mm
